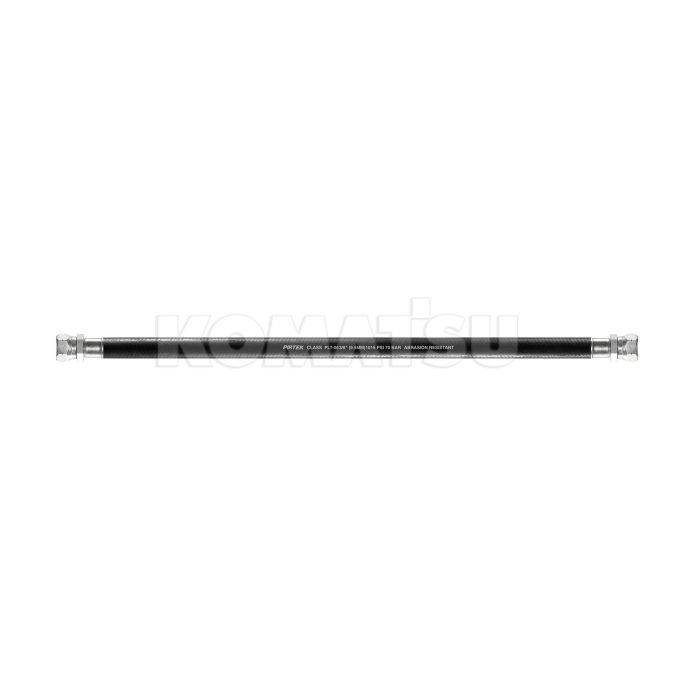

Hydraulic Hose Assembly, Medium Pressure, Length 1200 mm (07102-20312)
R 1,181.53
R 1,027.42
No stock available online.
Please contact your nearest branch to place a back order.
Part Number
07102-20312
Komatsu Genuine hydraulic hoses are a critical component of the hydraulic system. Hoses are used for fluid conveyance and are specifically engineered and tested to handle extreme pressure and temperature changes.
| Diameter-ID (mm) | 9,5 |
|---|---|
| Left Fitting Angle | Straight |
| Left Fitting Type | Taper Seal |
| Length (inch) | 47,24 |
| Length (mm) | 1200 |
| Pressure Rating-Mpa | 3 |
| Right Fitting Angle | Straight |
| Model Type | HD785-2, PC130-5, PC130-6, PC200LC-3, PC200LC-5, PC210-5, PC210LC-5, PC210LC-6, PC300LC-3, WA800-1, WA800-2, PC200-3, PC200-5, PC220-3, PC220-5, PC300-3, PC400-3, PC400-5, PC600-6, WA500-3, WA800-3 |
| Right Fitting Type | Taper Seal |
| Temperature Rating (Celsius) | -40?+120 |
| Length [inch] | 47.24 |
| Length [mm] | 1200 |
